Faital Pro LTH102 High Frequency Horn (1 Inch Elliptical Tractrix)

Faital ProSKU: FTL-LTH102-TR390103

Price:
$128
Stock:
In stock
 More payment options

Description

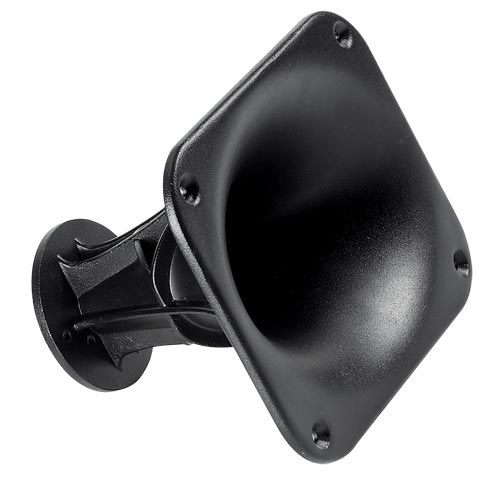

The LTH102 is a 1-inch Elliptical Tractrix horn. It works amazing at reproducing high frequencies up to 20 kHz. Please contact us with any questions!



NOMINAL SPECIFICATIONS

Type Elliptical Tractrix
Throat Diameter 25.4 mm (1 in)
Frequency Range 0.8÷20 kHz
Recommended Crossover Freq. (1) 1 kHz
Horizontal Nominal Coverage (-6dB) (2) 60°
Vertical Nominal Coverage (-6dB) (2) 50°
Directivity Index (2) (3) 9.5 dB
Material Al
Mouth Height 189 mm (7.44 in)
Mouth Width 235 mm (9.25 in)
Depth 171.6 mm (6.76 in)
Mouth Mounting Holes (4x) 6.5 mm (0.26 in)
Net Weight 1.2 Kg (2.65 lb)
Shipping Box
(Single Carton Box)
268 x 207 x 185 mm
(10.6 x 8.2 x 7.3 in)
Shipping Weight 1.45 Kg (3.20 in)
NET Air Volume filled by HF Horn 1.1 dm^3 (0.039 ft^3)
